Description

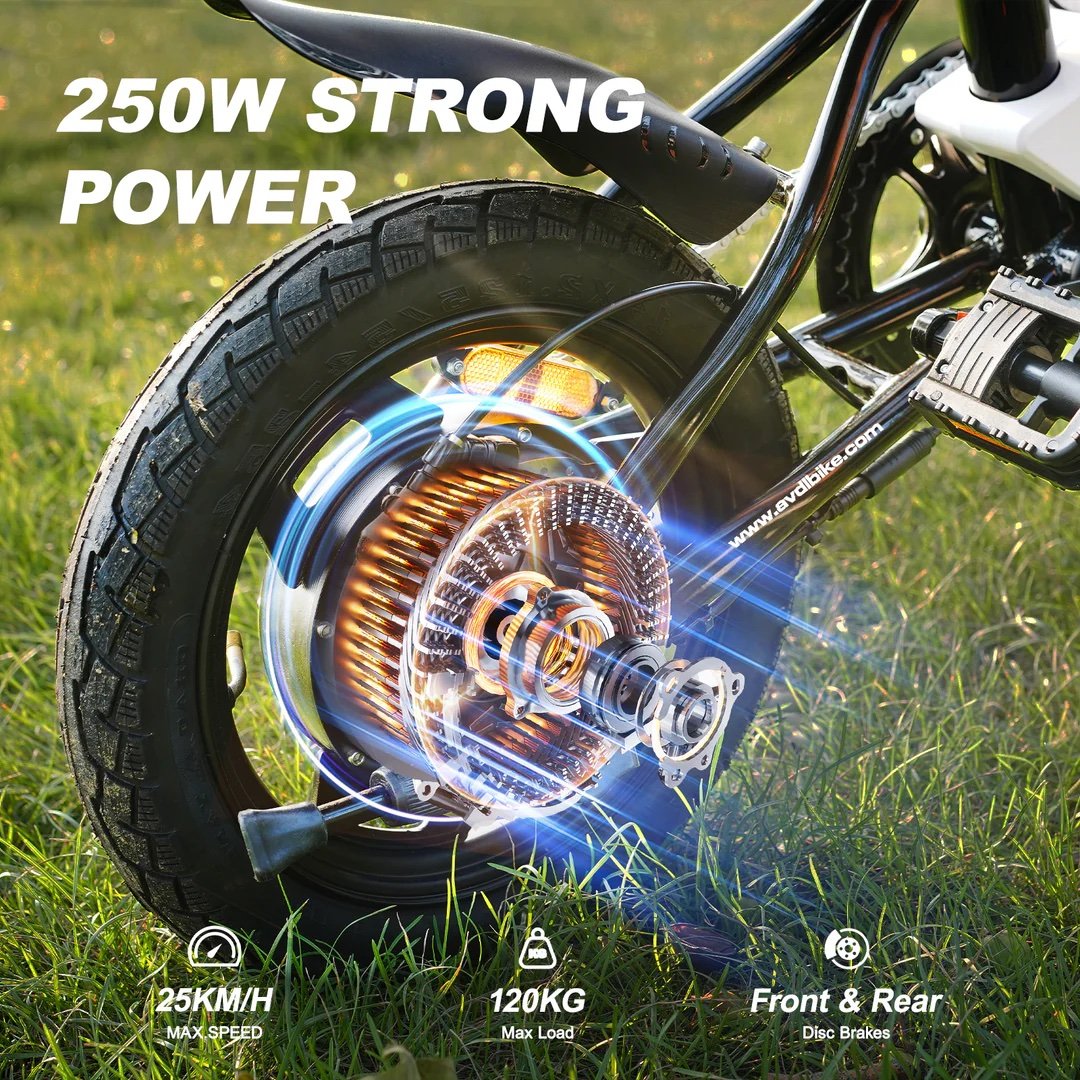

250W Brushless Motor
36V 250W brushless motor, low operating noise, maximum climbing angle for daily riding can reach 20°, and maximum speed can reach 25Km/h.
Energy Saving Battery
The 36V 6.4Ah（230.4Wh) replaceable battery completely hidden inside the ebike frame for protection. The removable battery allows you to easily charge the battery in your apartment without having to carry your ebike upstairs. 2X fast charge in 3-4 hours to power your ride for up to 20 miles (pedal assist mode)
Foldable & Convenient Design
With foldable handlebars, pedals, and a height-adjustable seat, the 14” electric bike is designed for minimal storage space (＜0.15m³) and weighs just 40 pounds, and the seat can also be height-adjusted to everyone’s preferences.
Safe Riding
Electric bicycles are certified to the strict standards of UL2849 and CFR1512. Rear Disc brakes provide ALL weather stopping power, front and rear lights enhance visibility, promoting safer rides day or night.
Easy Assembly
95% pre-assembled, no complicated assembly, quicker to enjoy your riding.
NOTE: To unlock the speed limit, hold the brake handle and press the “M” button three times.
Specifications
| Brand | AVDL |
| Model | A02 |
| Battery Capacity | 36V 6.4AH |
| Motor Power | 250W |
| Torque | 20-25NM |
| Meter Display | LCD Display |
| Max. Speed | 25km/h (can be unlocked) |
| Sensor | Brake sensor |
| Riding Mode | Pure Electric |
| Pedal Assistant (PAS) | |
| Pedal | |
| Max range for pure power | 10-15KM |
| Max range for assisted mode | 20-38KM |
| Max climbing grade | 20° |
| Wheel & Tire | 14 x 2.125 inches |
| Braking System | Front and rear disc brakes |
| Input voltage | 36V |
| Charger | 42V |
| Charging Time | about 3-4hours |
| Max load | 120KG |
| Handlebar Height | 106CM |
| Saddle height | 65CM |
| Suitable Height | 140-175CM |
| Lights | Front & Rear LED Lights |
| Mudguard | Front & Rear Mudguards |
| Waterproof | IP54 |
| Battery Weight | 1.3KG |
| Net Weight | 18.5KG |
| Gross Weight | 23.6KG |
| Full Size | 117×49×108CM |
| Folding Size | 117×22.5×63.5CM |
| Package Size | 102.5×22.5×55CM |
| Package Includes | 1 x AVDL A02 E-bike |
| 1 x 36V 6.4Ah Battery | |
| 1 x Battery Charger | |
| 1 x Instructions |
